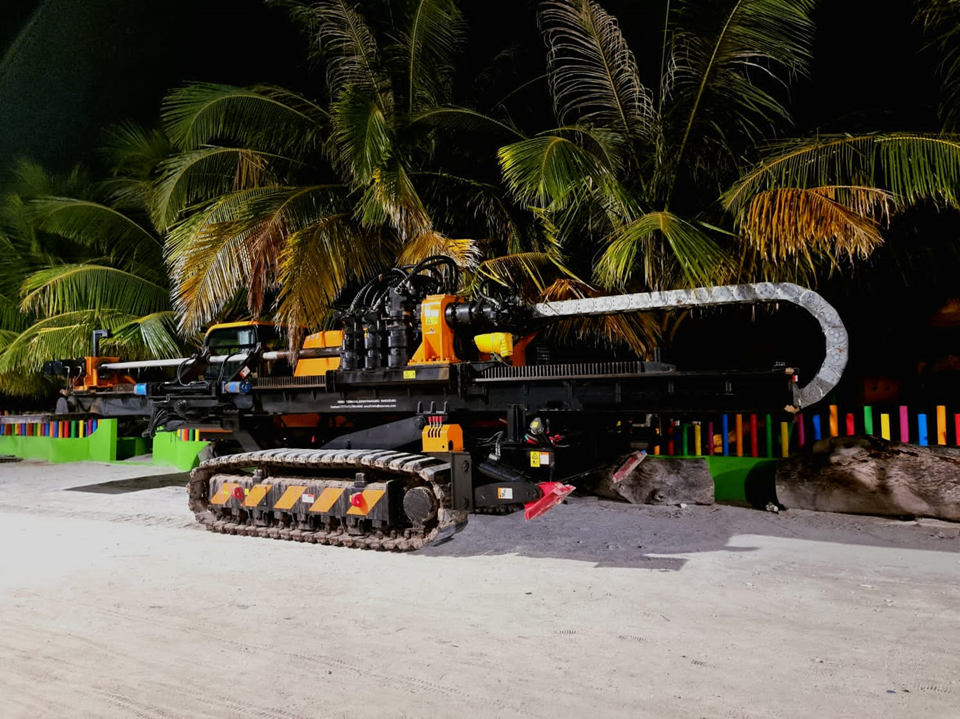

80ton HDD Machine for sale | ZL800-1200A 80T pulling reinforcement to 120T HDD Machine

ZLCONN Medium size HDD drilling rig(80ton-120ton) used for laying larger diameter and longer distance pipelines in cities. We are glad to send our competitive price to you with outstanding machine performance. ZLCONN HDD Machine is your right choice.

1) 9 workshops of 60000sqm.

2) HDD Machine Shaft, rack and pinion ,beam.. self produce.

3) 50no.s per month.

4) HDD Machine,Horizontal Directional Drilling Rig surface by electronicphoresis,10years no rust..

5) Oversea service provided. 264kw big power.

2.  ZL800A/1200 80-120T HDD Machine Specs

Engine powerKW264
Engine brand 6BTAA8.3-C260 Cummins
Max. Pull / Push forceKN800/800 or 1200
Max. Pull / Push speedm/min40
Max TorqueN.M35000
Max. Slewing speedr/min140
Max. Flow of slurry pumpL/min650/850
Max pressure of slurry pumpMpa10
Max. drill pipe diameterMmФ1500
Max. Working distanceM1000
Crawler speedKm/h2.5-4.0
Drilling rodMmФ102×6000
Push-pull type Rack & Pinion
Max. grade ability°18°
Drilling Angle°10-20°
CabinFully a/cSelf-made
Crane2 TonSelf-made

80 to 120T ZL800-1200A  ZLCONN HDD Machine Price and Related Knowledges:

Advantages of  ZLCONN HDD Machine

  1. All models of ZLCONN HDD Machine are ok for customization beyond standard specification. We can adjust machine configurations to your project practice. For example, change the standard slurry pump to big pump if you require, change the engine to bigger model if your project needs or change motors to appointed models if you have preferred type or model. Flexible and customer-oriented we are.
  2. Thanks for Strict Quality Control Capability of ZLCONN HDD Mmachine. Benefited from our extraordinary machining equipment and metalwork capability, all the main steel structure of HDD are produced all by ourselves, like beam, rack, pinion, gear, shaft and so on, making us, making us possible to ensure strict quality of every parts of the machine and longer life and much more stability compared to many other companies.
  3. Full Extensions for ZLCONN HDD Machine with reasonable price list : Auto-pipe loading, semi-automatic pipe loading, auto anchor, air-conditioned cabin…all available.
  4. Oversea onsite service of course. Our HDD construction team can train or assist your team onsite to help you finish the job.
