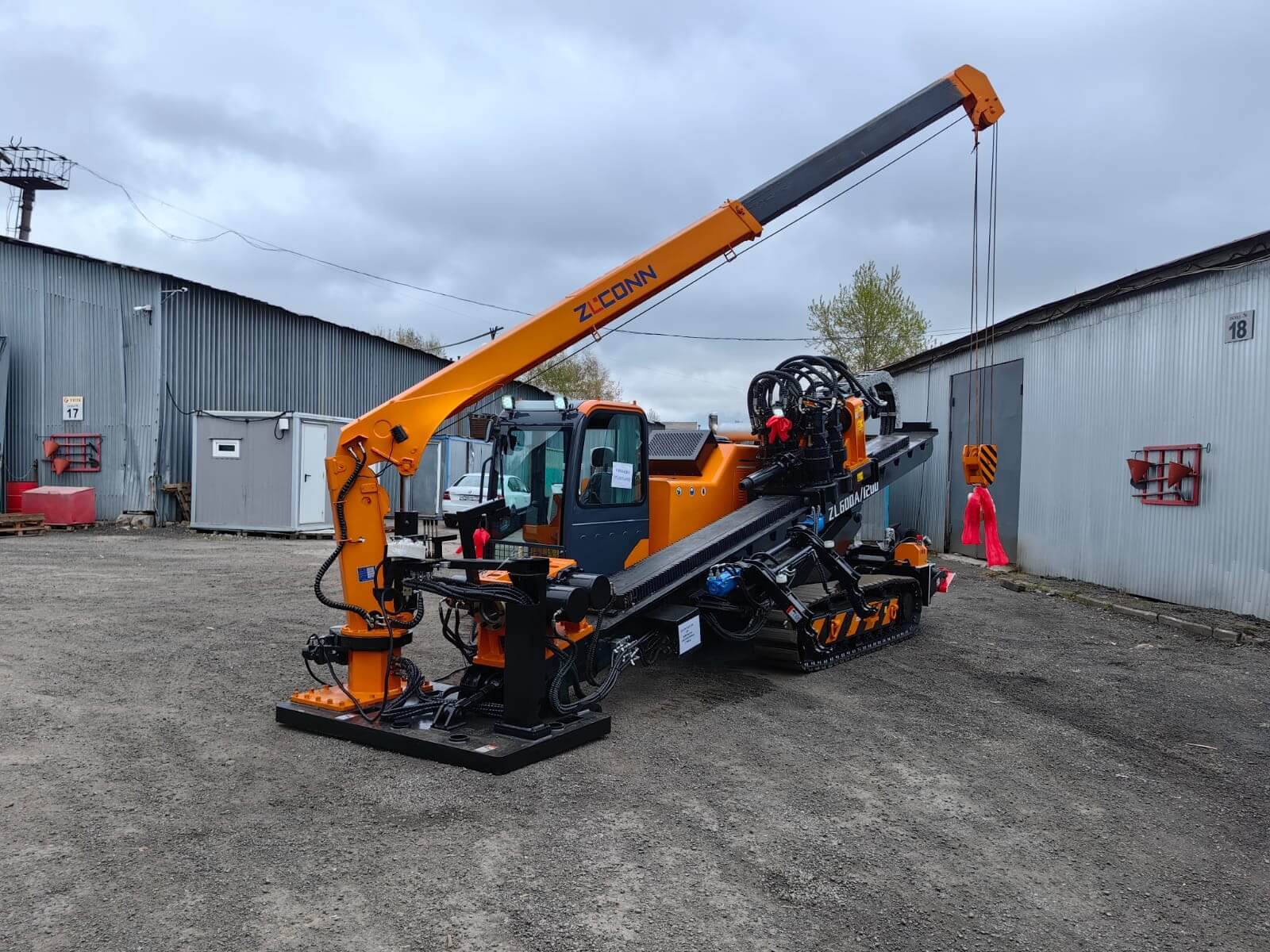

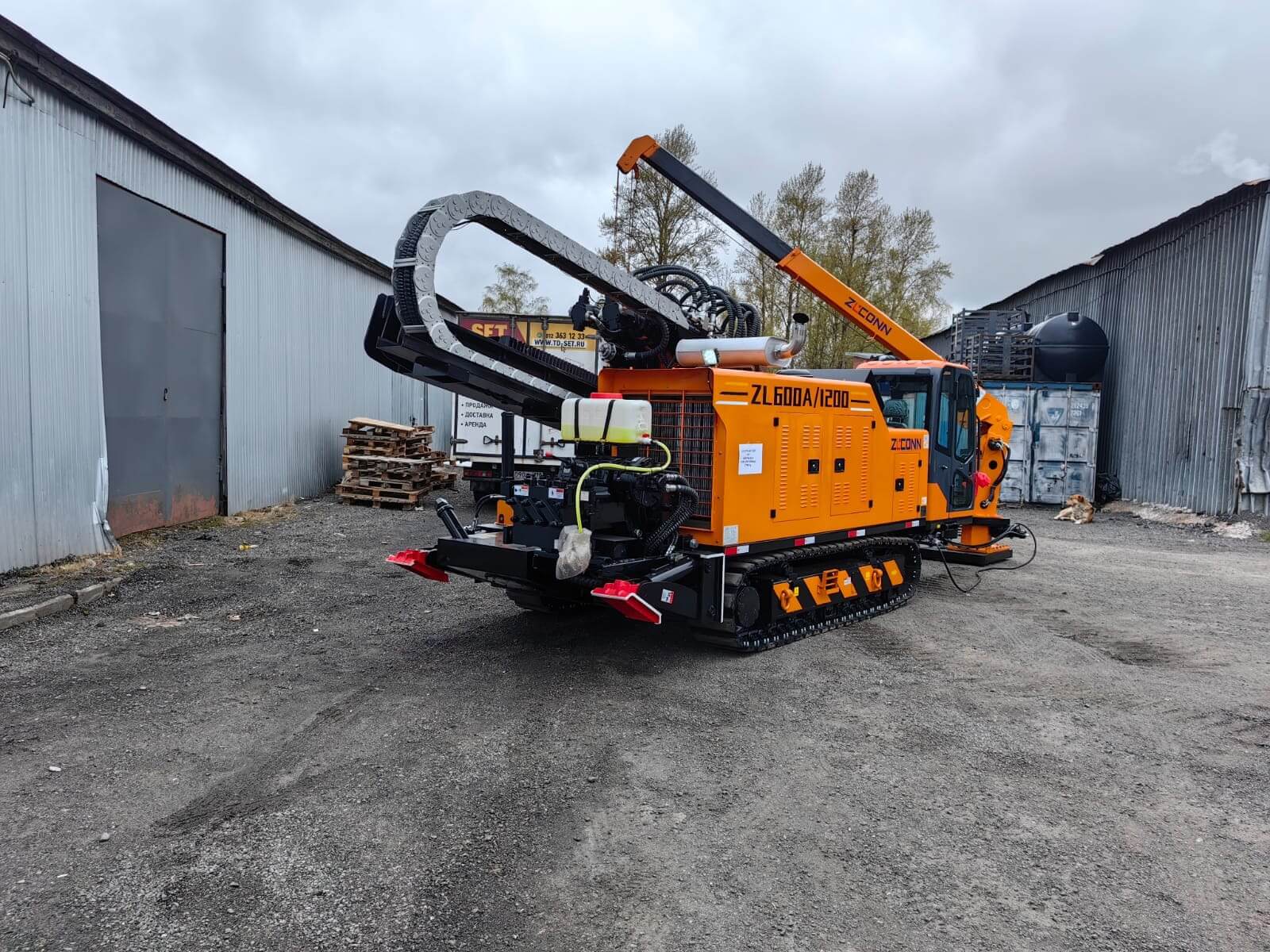

ZLCONN 60ton Horizontal Directional Drilling Machine | ZL600A HDD Machine
1. HDD Machine Price List — ZL600A 60T HDD Machine Specs
| Model | Unit | ZL600A HDD machine |
| Engine power | KW | 194 |
| Engine brand | Cummins | |
| Max. Pull / Push force | KN | 600 |
| Max. Pull / Push speed | m/min | 50 |
| Max Torque | N.M | 28500 |
| Max. Slewing speed | r/min | 150 |
| Max. Flow of slurry pump | L/min | 600 |
| Max pressure of slurry pump | Mpa | 10 |
| Max. drill pipe diameter | Mm | Ф1400 |
| Max. Working distance | M | 900 |
| Crawler speed | Km/h | 2.5-4.0 |
| Drilling rod | Mm | Ф89/102×6000 |
| Push-pull type | Rack & Pinion | |
| Max. grade ability | ° | 18° |
| Drilling Angle | ° | 10-20° |
| Weight | T | 16.5 |
| Cabin | Fully a/c | Self-made |
| Crane | 2 Ton | Self-made |
ZL600A Two\Standard configuration | ||||
NO. | Name | Unit | Qty. | Remark |
1 | Engine | Set | 1 | Dongfen Cummins |
2 | Hydraulic pump | Set | 2 | Danfoss(US) |
3 | Main rotary motor | Set | 2 | SEC |
4 | Travel motor | Set | 2 | TOBIS（Korea） |
5 | Push-pull motor | Set | 2+2 | SEC |
6 | Steel crawler and insert rubber block | Set | 1 | Hubei |
7 | Mud pump | Set | 1 | Tongfang/Elephant |
8 | Hydraulic System | Set | 1 | Closed variable + load sensitive control |
600ARotary and Push-Pull motor of brands Rexroth or Danfoss are optional | ||||
With the development of the technology, the product will improve constantly and the difference may emerge between goods and the technical information here and in Brochure. The condition of the supply goods should be go on with the sell contract. | ||||
2.60T ZL600A ZLCONN HDD Machine Price and Related Knowledges:
- All models of ZLCONN HDD Machine are ok for customization beyond standard specification. We can adjust machine configurations to your project practice. For example, change the standard slurry pump to big pump if you require, change the engine to bigger model if your project needs or change motors to appointed models if you have preferred type or model. Flexible and customer-oriented we are.
- Thanks for Strict Quality Control Capability of ZLCONN HDD Mmachine. Benefited from our extraordinary machining equipment and metalwork capability, all the main steel structure of HDD are produced all by ourselves, like beam, rack, pinion, gear, shaft and so on, making us, making us possible to ensure strict quality of every parts of the machine and longer life and much more stability compared to many other companies.
- Full Extensions for ZLCONN HDD Machine with reasonable price list : Auto-pipe loading, semi-automatic pipe loading, auto anchor, air-conditioned cabin…all available.
- Oversea onsite service of course. Our HDD construction team can train or assist your team onsite to help you finish the job.
