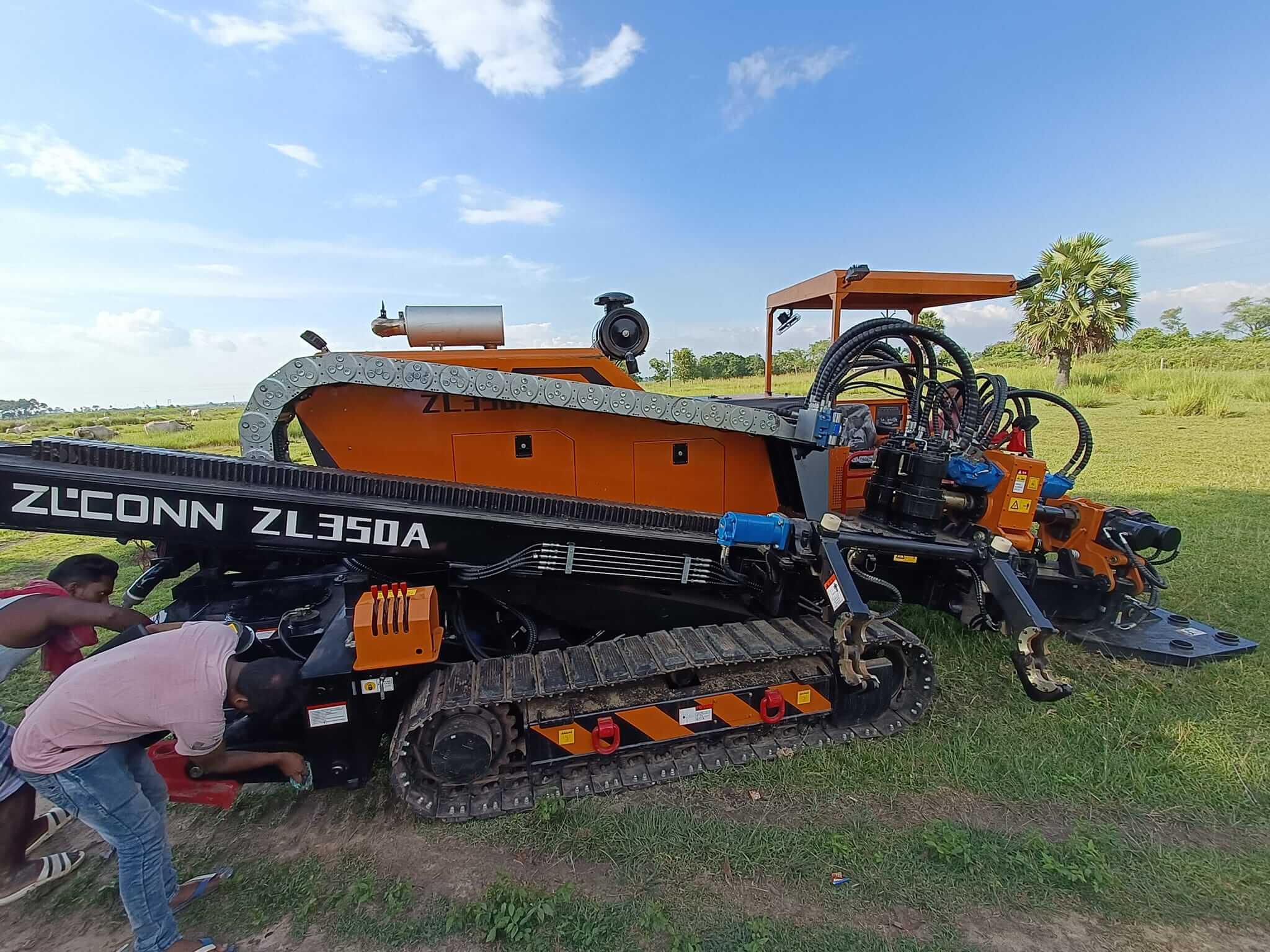

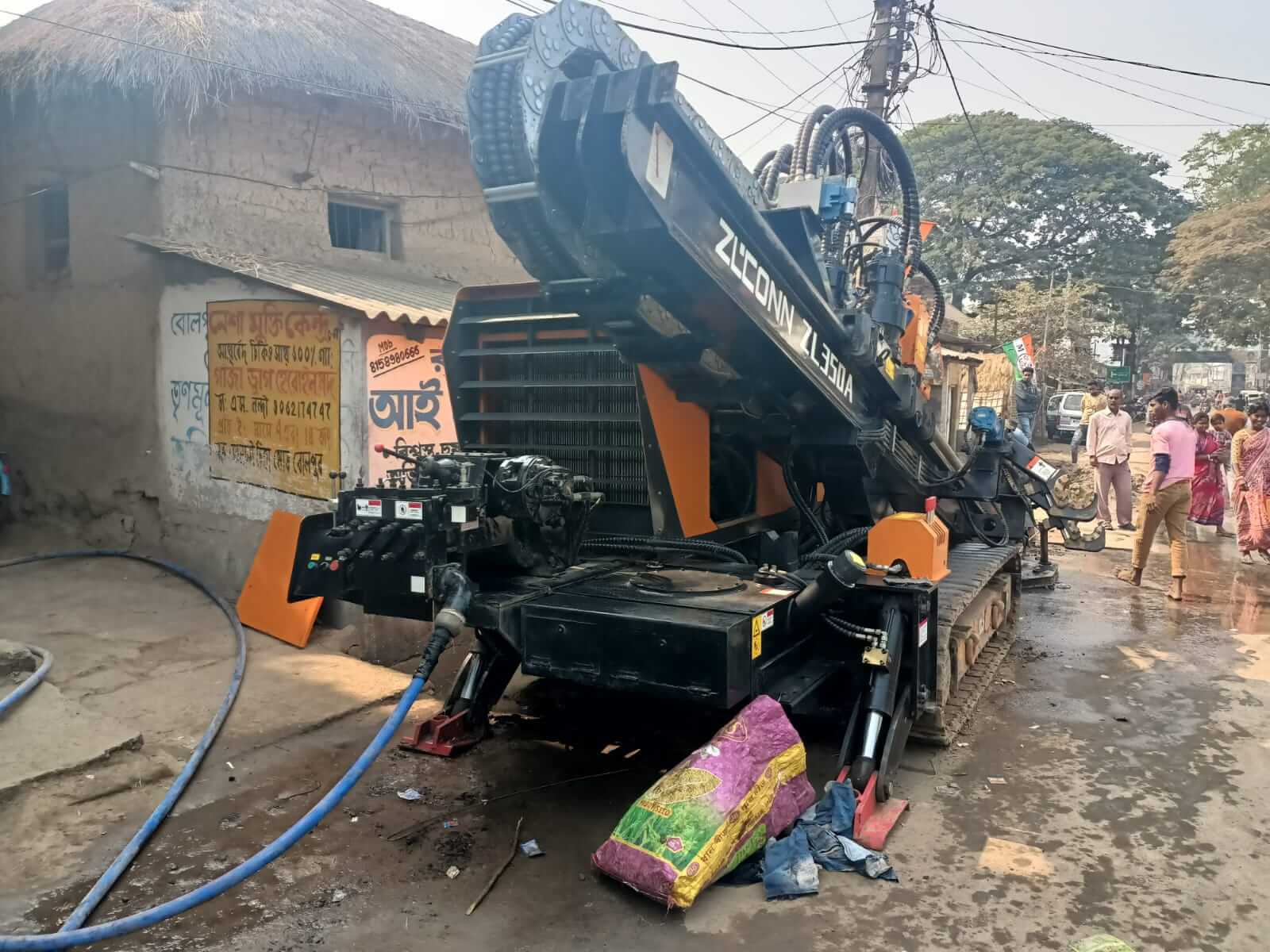

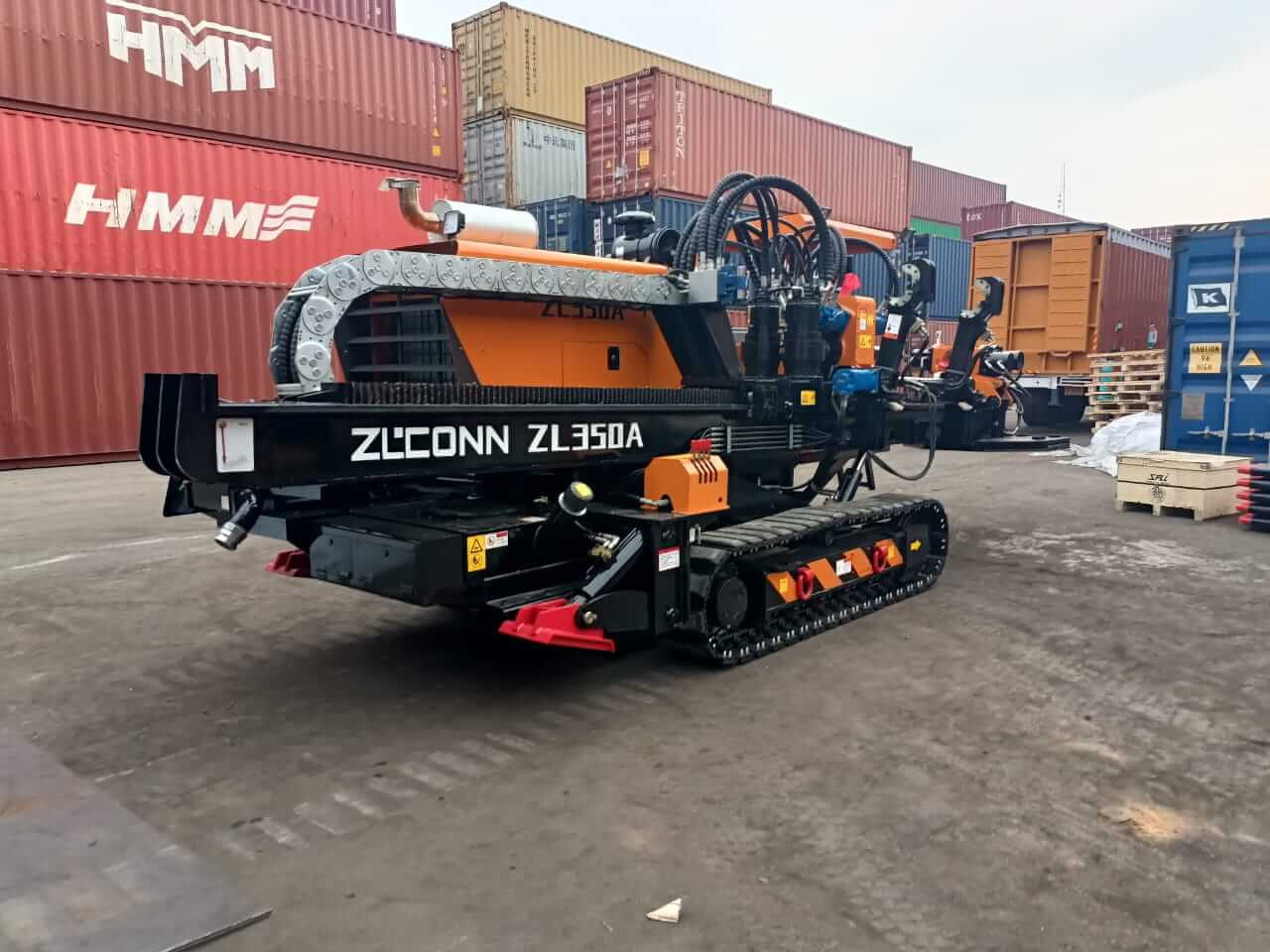

ZLCONN ZL350A 35ton HDD Machine price

ZLCONN  ZL350A 35ton HDD Machine Main Performance Characteristic

1. ZL350A horizontal directional drilling HDD machine equipped with Cummins engine; American Permco main pump; American Eaton motor as rotating motor, Italian SAI high-pressure and high-speed radial plunger push-pull motors, rotation speed 130 rpm; power can be increased to 70 tons (optional) )
2. Steel tracks are equipped with rubber blocks; rack and pinion push-pull mechanism;
3. Equipped with a new type of automatic rod-loading manipulator, with adjustable rod-turning speed;
4. The power head and holder are double-floating to protect the drill rod;
5. Onboard 350L mud pump (with enamel cylinder liner);
6. The hydraulic pilot control system meets the rocking point requirements of weathered rock drilling and is equipped with a friction positioning handle;
7. Push-pull high-speed and mud pump on-off can switch freely;
8. Equipped with mud flushing device, site flushing device, mud antifreeze device (optional), thread oil application device (optional);
9. Fully enclosed fixed or rotatory cab and dual-purpose air conditioning (optional);
10. Fully automatic rod loading system with box and hydraulic anchor device (optional);
11. It has both a small entry angle of 10° and a large climbing angle of 25°;
12. The hydraulic system and electrical system adopt modular integrated design, with simple and practical structure, strong stability and easy maintenance and repair;

13. Using rack and pinion push-pull, the transmission efficiency is high, the work is stable, and the maintenance is convenient and simple;
14. Equipped with Ф73 or 76×3000 drill rod to give full play to the drilling rig’s construction capabilities;
15. It adopts Korean TOBIS or China leading brand high and low two-speed high-torque walking motor, steel track and rubber boots, suitable for walking on any road surface;
16. Cold zone options: mud pump antifreeze device; air intake preheating device (including diesel filter element and oil-water separator diesel heating function), suitable for construction temperature 0~-35°;
17. Optional in extremely cold areas: MTD18A heating auxiliary ignition device, suitable for construction temperatures <-35°;
18. The operating console has a user-friendly design, one-button ignition, electronic throttle, friction positioning operating handle, dual USB charging connectors, LED ceiling light high-power fan, front and rear telescopic seats, wide operating visual range, strong adaptability, and telescopic ladder for easy access. , get off the vehicle and operate to improve the comfort of the operator.

一、ZL350A Main Technical Parameters of ZL350A HDD machine

NO.

Name

Parameter

NO. NameParameter
1Total Weight(t)10.59Dimension
(LxWxH)( mm)
6900×2300×2600
2Max.push/Pull force(kN)35010Max.torque(N.m)13200
3Max.push/pull speed(m/min)4011Max.rotary speed
( r/min)
130
4Engine power(kW)15312Max.mud pump flow(L/min)320L/350
5Running speed(km/h)2.5-4.013Max.mud pump pressure(Mpa)8
6Entry drill angle(°)10~2014Max.grade ability(°)25
7Max.rotating diameter(mm)110015Max.construction distance(m)500
8Drill pipe73/76mm×3000mm

二、Two\Standard configuration of ZL350A HDD drilling machine
NO.NameModelUnitQty.Remark
1Engine Set1Dongfen Cummins
2Hydraulic pump Set1Permco(US)
3Main rotary motor Set4ETON(US)
4Travel motor Set2TOBIS(Korea)
5Push-pull motor Set2Sai(ITA)
6Push-pull reducer Set2Ningbo
7Steel crawlerSteel crawler and insert rubber blockSet2Hubei
8Mud pumpYB350Set1Tongfang
9Hydraulic System Set1Hydraulic Pilot Control
With the development of the technology, the product will improve constantly and the difference technical may emerge between goods and the  information here and in Brochure. The condition of the supply goods should be go on with the sell contract.

 How to tell HDD Machine Price Right?

1 . check whether HDD Machine rods with machine and how many drill rods needed;

2.  check how many reamers with machine.

3.  check destination port( Whether need FOB price or CIF price)

4. Make sure whether locator and detector are with the machine, and which brand it is. Different locator and detector brands influence the price.

5. Make sure you are choosing the right locator. Because for different soil condition and depth, if you don’t know how to choose,pls check with our sales and engineer.

6. Check whether it is steel track or rubber track.

7. Check whether it’s automatic rod feeder or semi-automatic or manual,  You need to choose the suitable type based on your practice.

8. Check the anchor is hydraulic or manual in the price list.

9. Check the rod thickness and the brand.

10. Check whick kind of steel are used for HDD machine production. Different steel performance, stable, no shaking, life span big different.

11. Check the slewing speed of machine, different slewing speed means different drilling speed , means finishing job faster and earning more money

12. The most important thing is choosing the right model HDD Machine based on your pipe diameter, drilling depth,drillig distance, soil condition and so on.  If you chose the wrong HDD Machine models, it will cost of  a lot. ZLCONN provides the service to help customer suggested the most suitable machine models and tools and parts and device. If you need help from ZLCONN feel free to contact us.
