HDD mud mixer, mud mixing system

Whatsapp: 0086 18274950733

Request a quote now

Answer any question about the products for you.

ZLCONN mud mixer equipment suitable for the preparation and mixing of drilling fluids in trench construction, hole construction, trenchless construction, and horizontal directional drilling construction. It has the functions of rapid preparation and rapid mixing of bentonite mud. This product consists of a rapid mixing device, pump unit, manifold, and tank. According to different slurry storage capacities, different slurry mixing speeds can meet the needs of different customers.

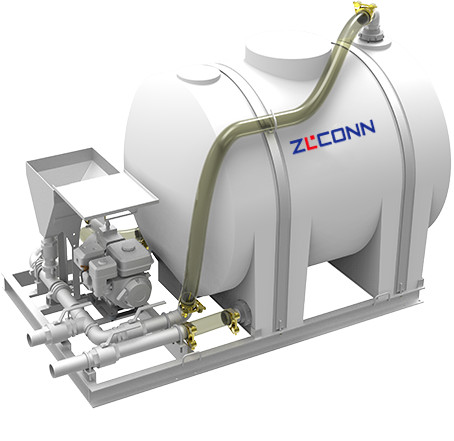

mud mixer, mud mixing tank
mud mixer, mud mixing tank

mud mixer was designed to mix dry or liquid drilling products with clean water into slurry in the constructions such as groving, boring and HDD horizontal directional drilling projects requirements. the unit consists mixing apparatus, pump unit, pipe assembly and tank. customers can choose different models according to their need.

maintechnical parametercycling volume(m³/h)capcacity(m³)total power(Kw)Dynamic typeoutlet(mm)weight(kg)largest dimension
(L*W*H)(m)
GMM25024.8gasoline engine763002.6*1.25*1.6
GMM37039.6gasoline engine764503.4*1.25*1.6
