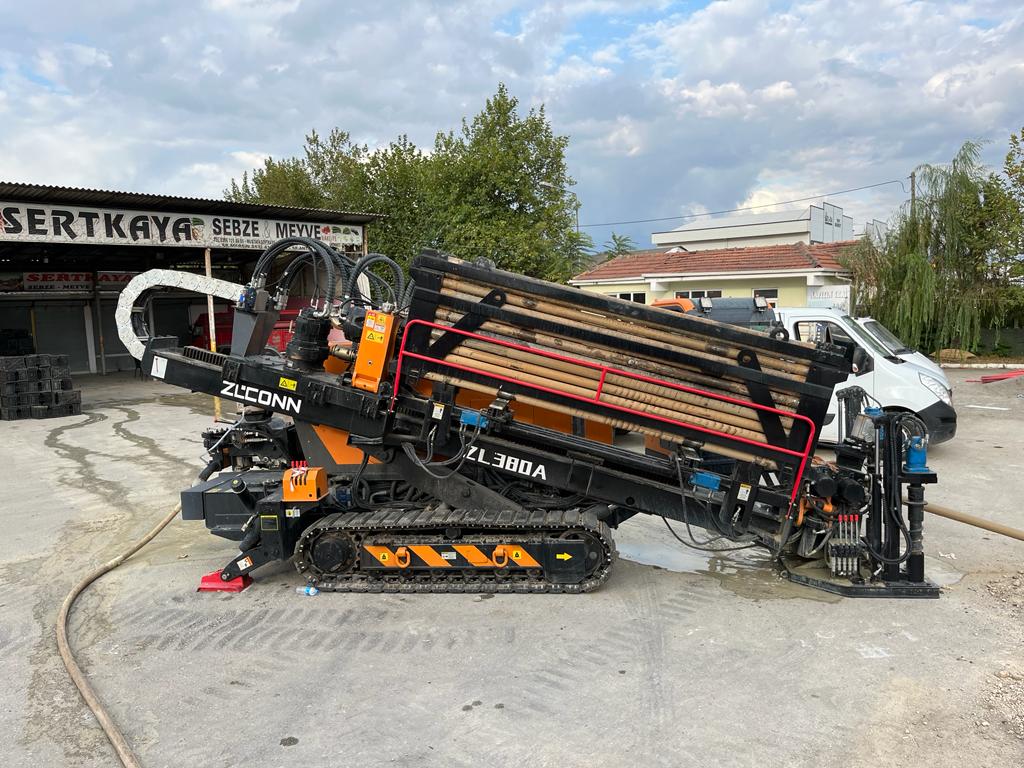

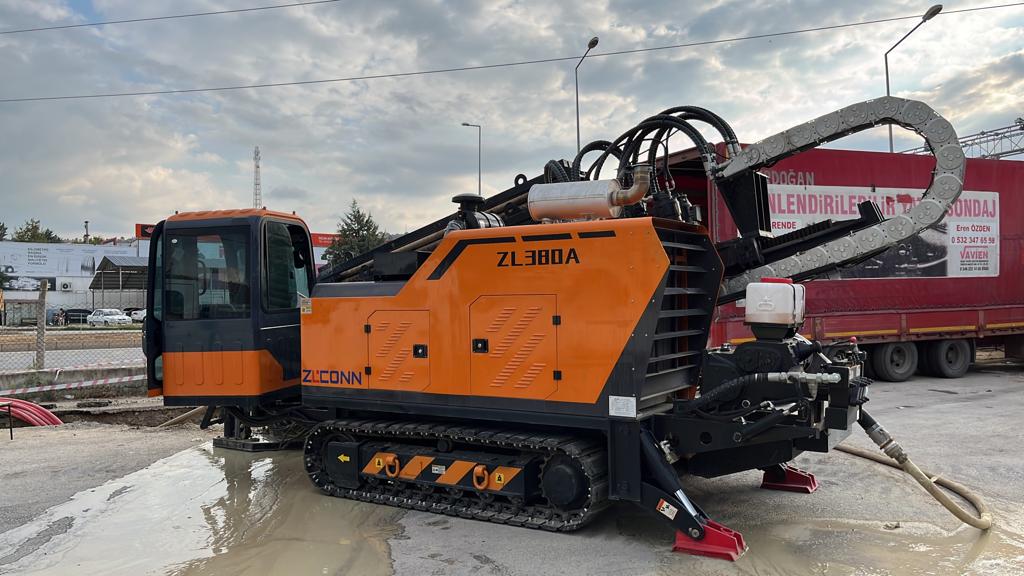

ZLCONN 38TON Horizontal Directional Drilling Machine

1. Outstanding ZL380A Horizontal Directional Drilling Machine

 ZLCONN ZL380A is the newly published  Horizontal Directional Drilling Machine to compare with Vermeer HDD Machine by better performance and lower price. Featuring high slewing speed 165rpm along with big force 38t, ZLCONN 38ton horizontal directional HDD drilling machine completely surpasses all Chinese brands in quality and efficiency

Named by High Speed  Horizontal Directional Drilling Machine, this ZL380A 38t HDD machine is unique the high slewing speed 165rpm, 165rpm,165rpm that no Chinese machine can reach at same time keep the big force 38t. Many other brands only 110rpm or 120rpm. Think how much the drilling efficiency will be improved if you use our ZL380A machine, 20% ! 30% ! You will save much more time when doing the drilling work. That means you will use the same time doing long distance jobs and earning more money, why not choose ZLCONN Hi speed ZL380A Horizontal Directional Drilling Machine.

You Will Get More ZLCONN Models by Click Here ZLCONN HDD Machine Full Models

2. Why ZLCONN Hi-speed  ZL380A 38T Horizontal Directional Drilling Machine can compete Vermeer HDD Machine and win all Chinese brand HDD machine. Only to review these

1 . All Push/ Pull/ Slewing motors are ITALY SAYI high pressure, high speed Radial Piston Motor, no Eaton Motor, double price double performance than EATON Motor

2 . Hydraulic pump all high pressure Permco USA not China brand

3. Pilot control system to make the machine operating smoothly and accurately

4. horizontal directional drilling machines surface by electronicphoresis,10years no rust..

3. ZL380A 38T Horizontal Directional Drilling Machine Specs

ModelUnitZL380A
Engine powerKW153
Max. Pull / Push forceKN380
Max. Pull / Push speedm/min40
Max.TorqueN.M16000
Max. Slewing speedr/min150
Max. Flow of slurry pumpL/min350
Max.pressure of slurry pumpMpa8
Max. drill pipe diametermmФ1200
Max. Working distancem500
Crawler speedKm/h2.5-4.0
Drilling rodmmФ73/76 x3000
Push-pull type Rack & Pinion
Max. grade ability°25°
Drillling Angle°10-20°
WeightT11
Dimension(L*W*H)mm6570*2235*2560

4. Knowledge you don’t want to miss –  ZLCONN  Horizontal Directional Drilling Structure

Horizontal Directional Drilling Mud Pump System:
HDD Mud pump is more wear-resistant with enamel housing and is used for life time. Power and hydraulic systems are fully designed to meet the needs of higher displacement mud pump replacement. equipped with mud cleaning device equipped with mud anti-freeze device.

Horizontal Directional Drilling Power System:
USA Brand engine and main pump. Engine installed with low temperature run system.

Horizontal Directional Drilling Control System:
Pilot control system, response time is fast, only 1s. The integrated modular electrical system is more stable and easy to maintain.
