Lilin Mud Motor

Whatsapp: 0086 18274950733

Request a quote now

Answer any question about the products for you.

Lilin Mud Motor Usage

It is one kind of positive displacement downhole motor, with working principle is to convert the high pressure fluid power of mud into mechanical energy for bit rotation. It is widely used in oil field and mine directional well and horizontal well, cluster Wells and vertical Wells,HDD Machine drilling, deflecting, adjusting azimuth, coring, reaming, side tracking and workover treatment, and also applied in some special operations as compound drilling and traversing, etc.

Lilin Downhole Motor Advantages

Lilin Machinery Group Co., Ltd. is a technological company producing petroleum, petro-chemical machinery equipments and tools. It consists of Lilin Petroleum Machinery Co.,Ltd. Lilin Screw Machinery Co., Ltd. and Lilin Bit Co.,Ltd. Lilin Petroleum Machinery Co.,Ltd. and Lilin Bit Co.,Ltd. are high-tech enterprise.The Company mainly engaged in the production of downhole motors, tricone bits, hole opener,surface drive head& PC.downhole pump, hydraulic breakout unit, Power Section Dynamometer etc. and oil,mining drilling industry professional tools and equipment manufacturing.Tianjin Lilin Petroleum Machinery Co., Ltd is a subsidiary company (group of company) of Tianjin Lilin Mechanical Group Co., Ltd.

HDD Power Section Designs – the displacement of our power sections were carefully matched to the mud pumps commonly found on major OEM directional drilling machines. It is this precise match that gives our motors exceptional HDD performance.
Slow Speed – the motor operates at a speed more compatible with roller bits. This significantly lengthens bit life with increased on bottom time and fewer round trips.
High Torque – more set down weight can be put on bit for faster penetration with reserve power for the hard spots.
Oil Filled Bearing Section – pre-pressured and pressure compensated bearing section provides long seal life and more dependable bearing operation.

Regarding product quality as the life for development, the enterprise boasts 60 sets of testing equipments, instruments and tools such as advanced non-destructive testing machine, coordinate measuring instrument, spectrometer, which ensure product quality and performance in terms of facilities. The company boasts a large contingent of veteran and skilled staff, implements various operation regulations, and engages in the production in strict compliance with product processes. Products are manufactured by all passed Factory Acceptance Tests (FATs) in strict accordance with standards, thus ensuring to excel their domestic counterparts and achieve a leading position in the aspects of applicability, reliability, safety and economical efficiency, etc.

Lilin HDD Mud motor Options

A Variof Types & the Capabilities In accordance with the actual drilling needs, we push out high, midiem and low speed hdd downhole motors, of a variety of types with different functional configuration and application for all working conditions.

Standard type Standard motor, mud lubricating transmission shaft, straight, single and double bent.

Long typeThe torque is increased by 30%to 60%than standard ones, mud lubricating transmission shaft, straight, single and double bent.

High flow rate type the adoption of hollow rotor and different sizes of hard alloy jet nozzle to increase the incoming flow and bit power.

High deflection type the unique structure design makes the overall length shorter and bent housing closer to the bit, deflection rate reach up to 1/m, so as to keep good working conditions.

High temperature resistance type the motor stator is made of superior quality high temperature resistant rubber, which enables the motor to perform stably in the well bottom at max. 175 C.

Oil-stransmission shaft typeealed improves the working condition of thrust bearing and radial bearing, and increases the life span of each single trip.

Bend angle adjustable type we equip the motors with adjustable bend housing in different types and sizes, and through which before dropping we can adjust the bend angle.

Saturated saltwater mud resistance type the special coating on the rotor with strong ability of anti-corrosion and wear-resistance enables the motor to work stably for a long time in the condition of saturated saltwater mud.

Impact Resistance Type adopt a series of shock absorbers to lighten or eliminate bit jumping and impact shock occurring in drilling, protect the drilling tools avoiding damage, increase service life and ensure the drilling safe and efficient. ( style impact resistance downhole motor is our new technology patent products. Patent No ZL2011 2 0000193.2)

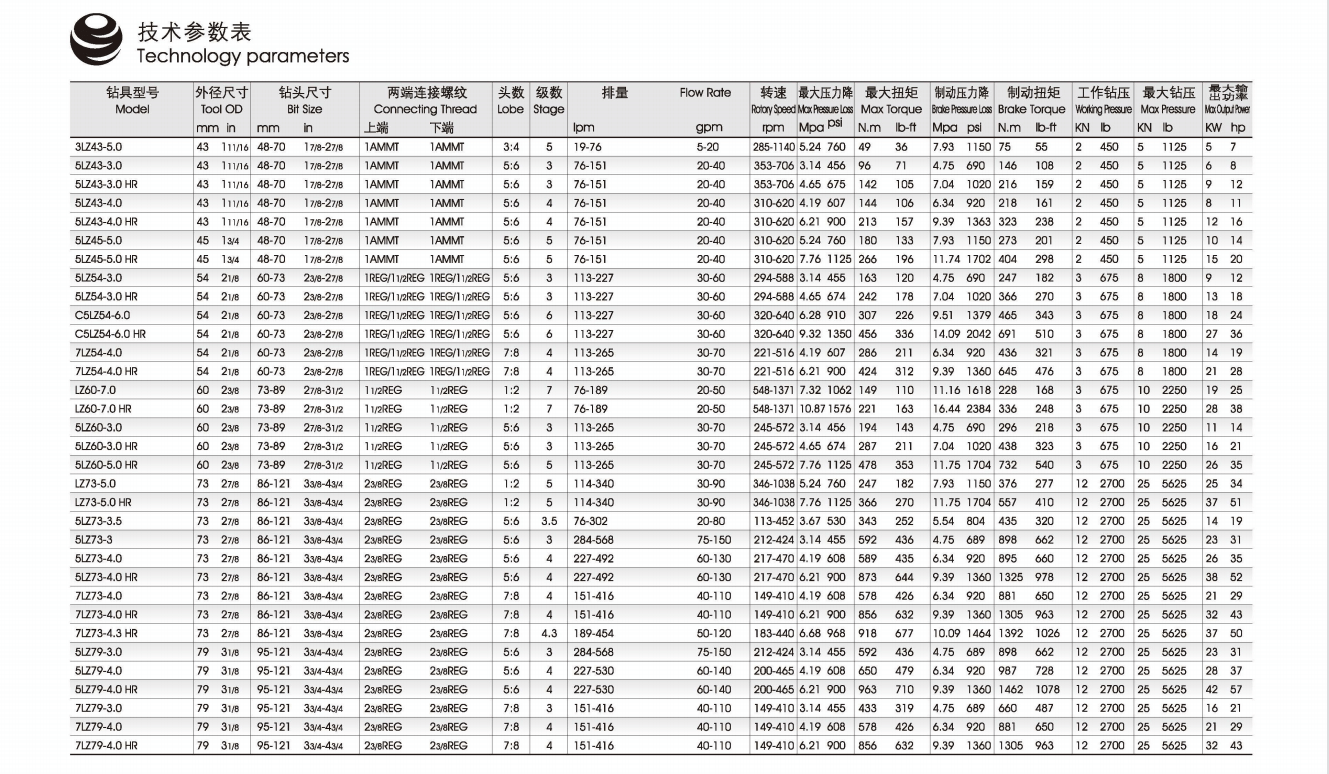

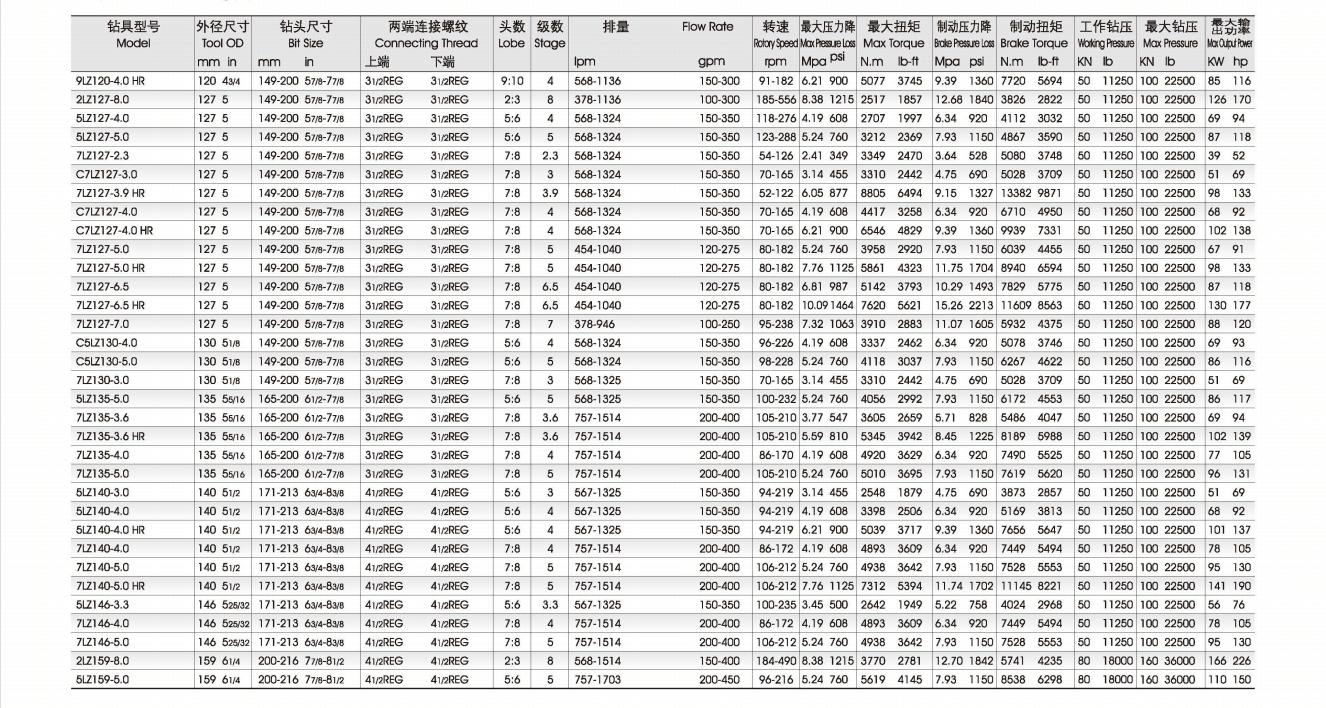

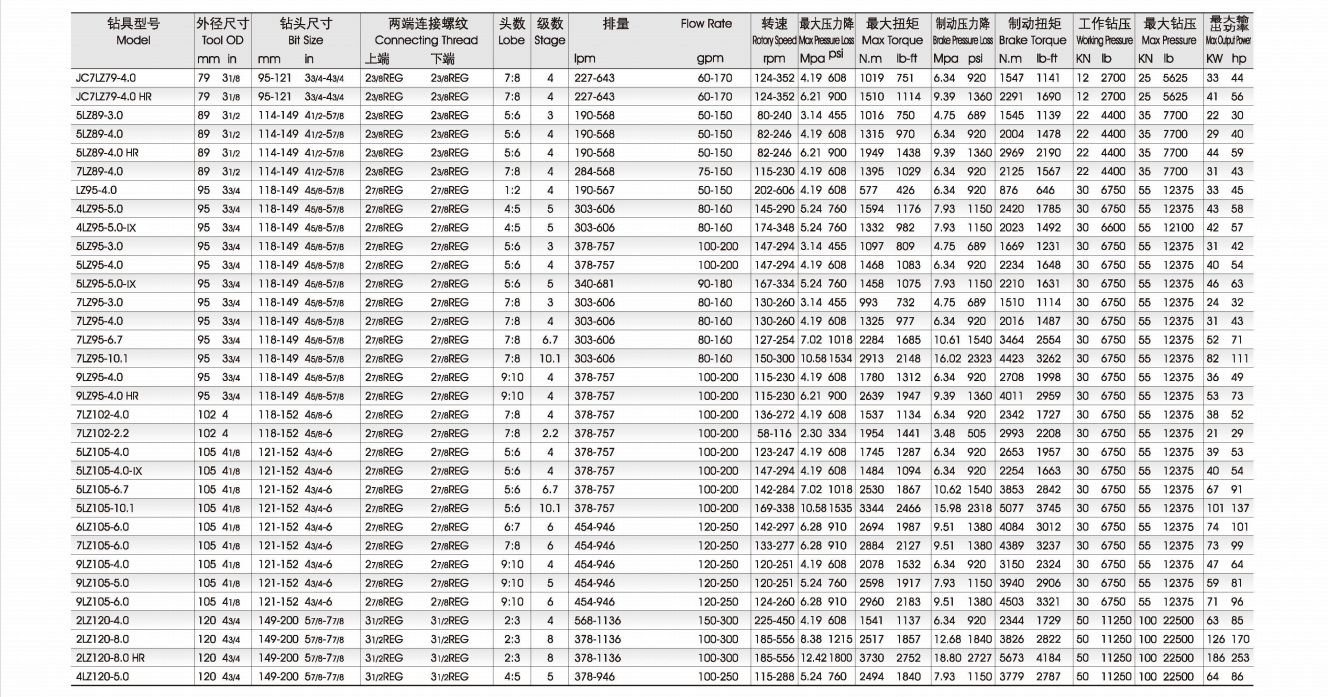

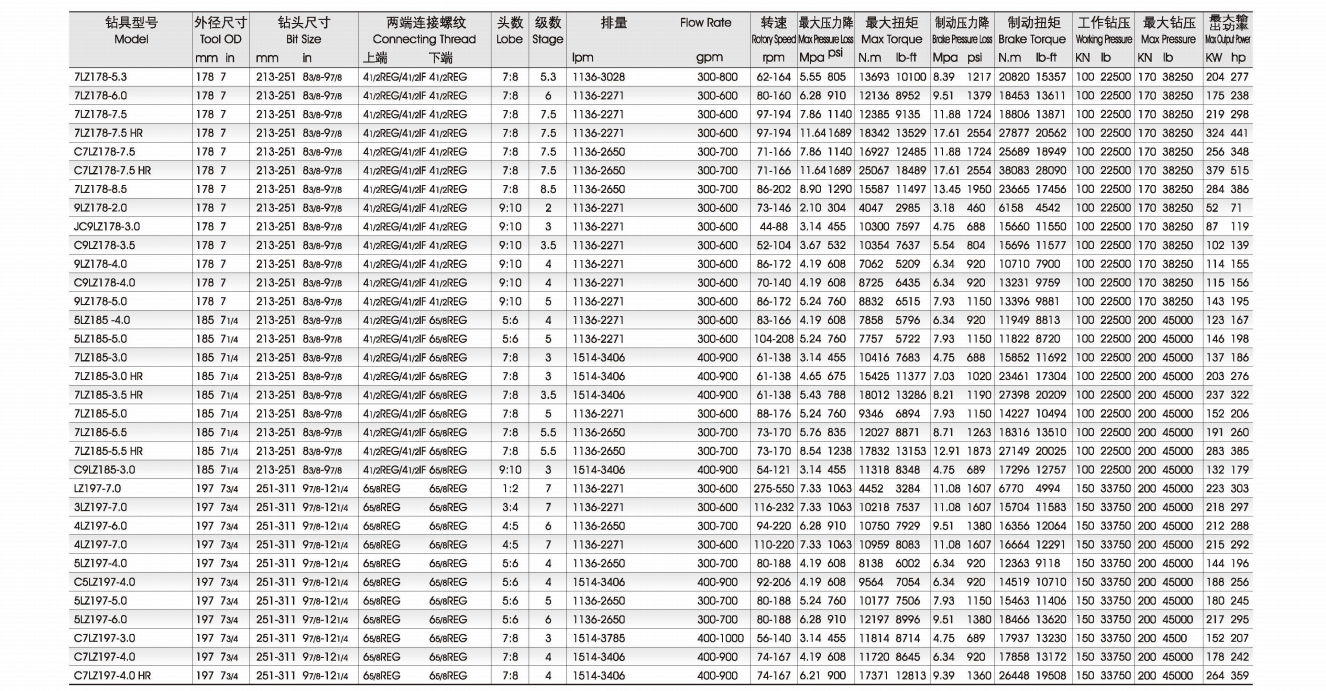

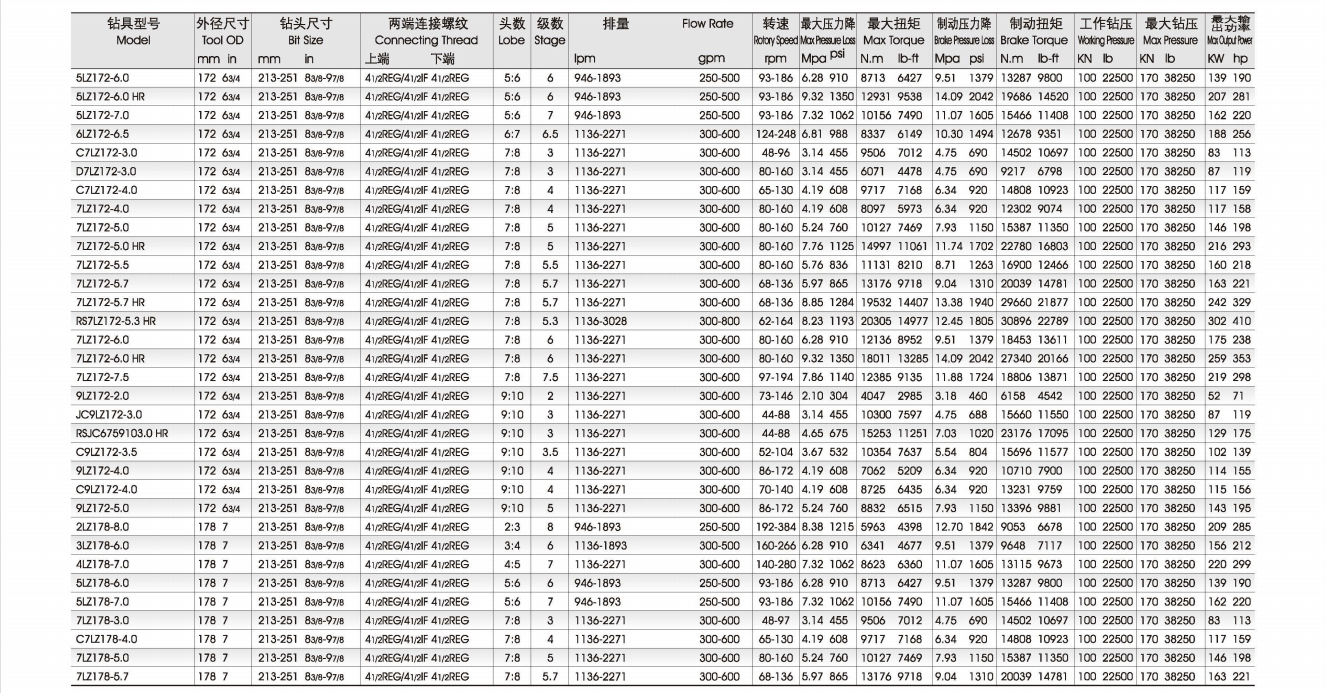

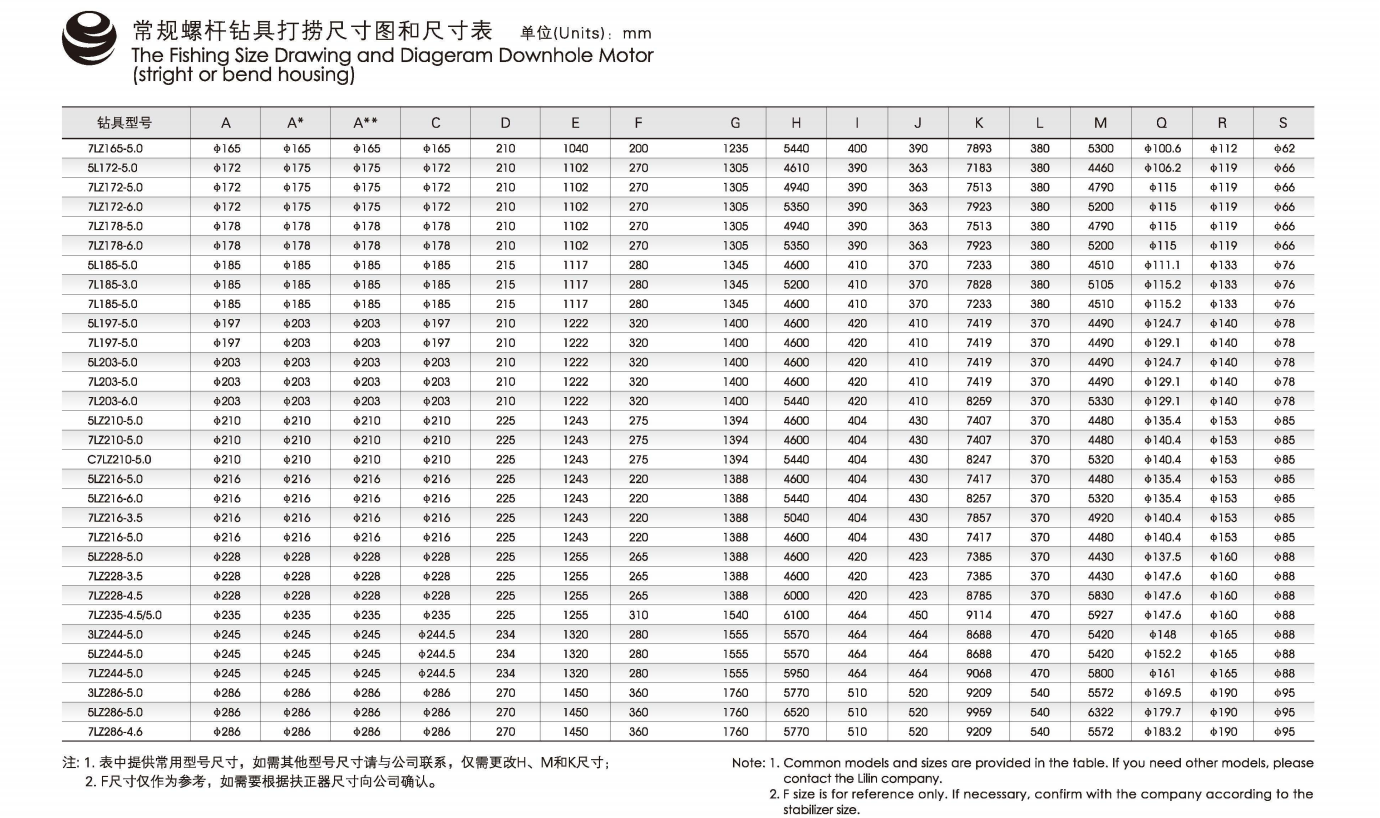

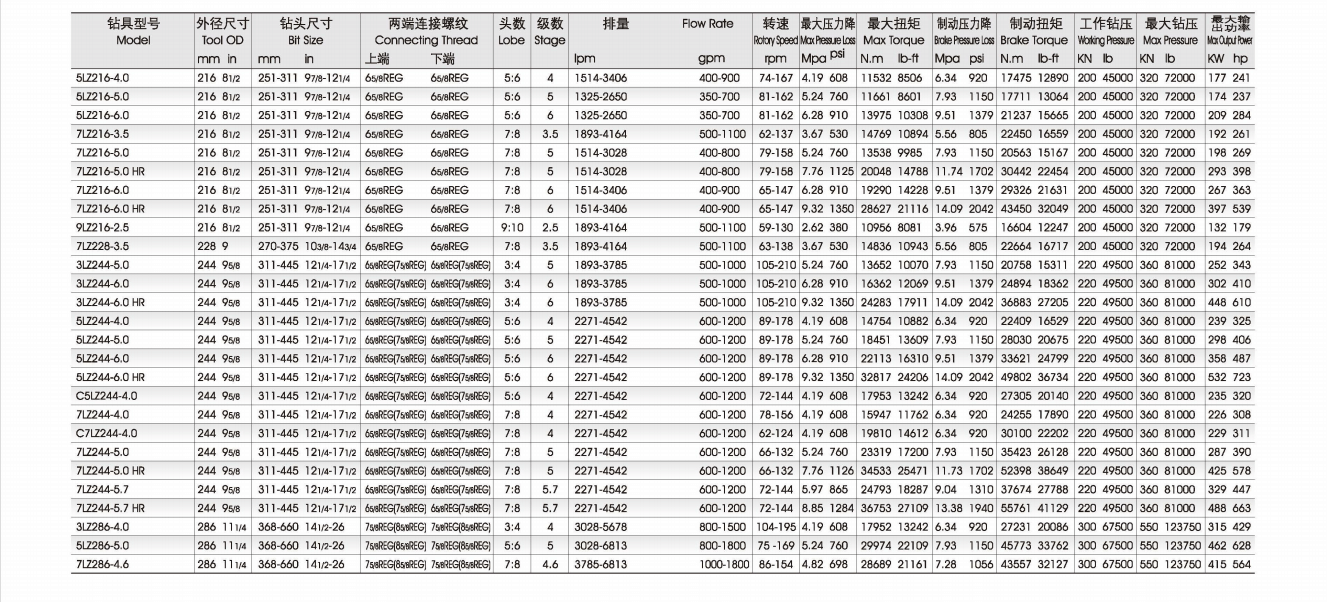

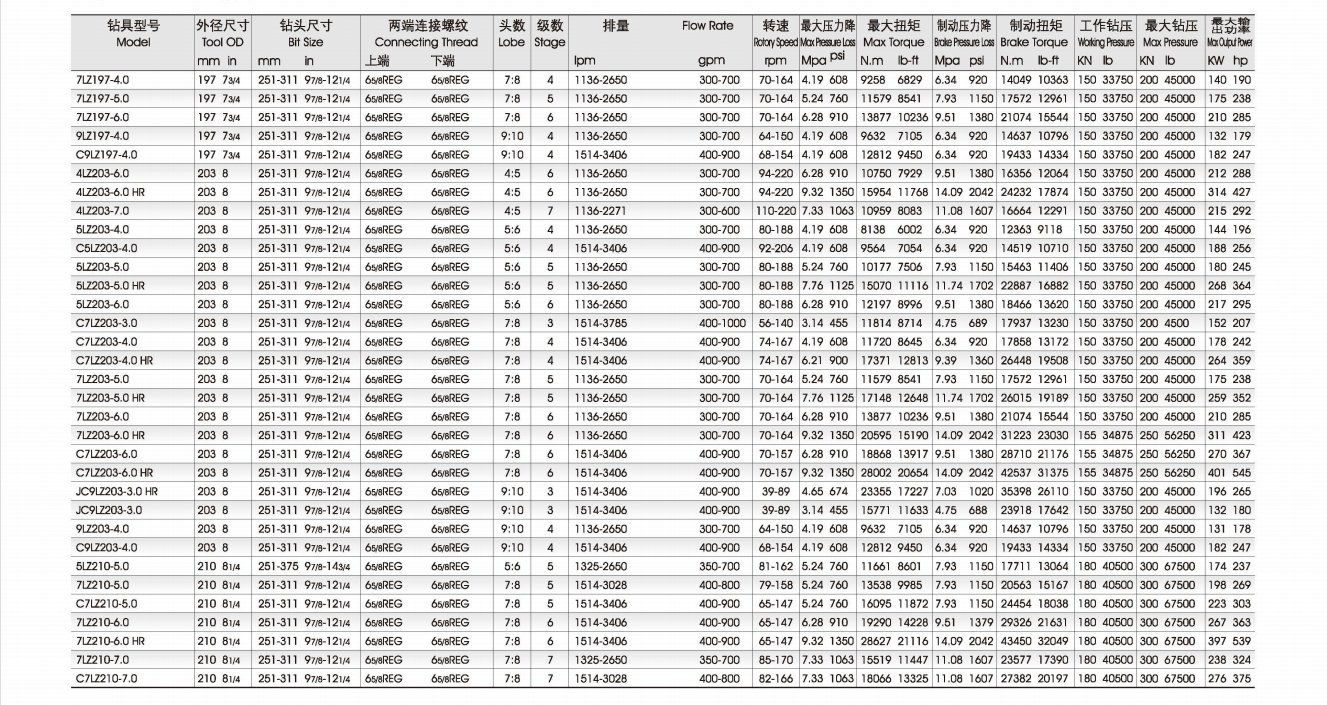

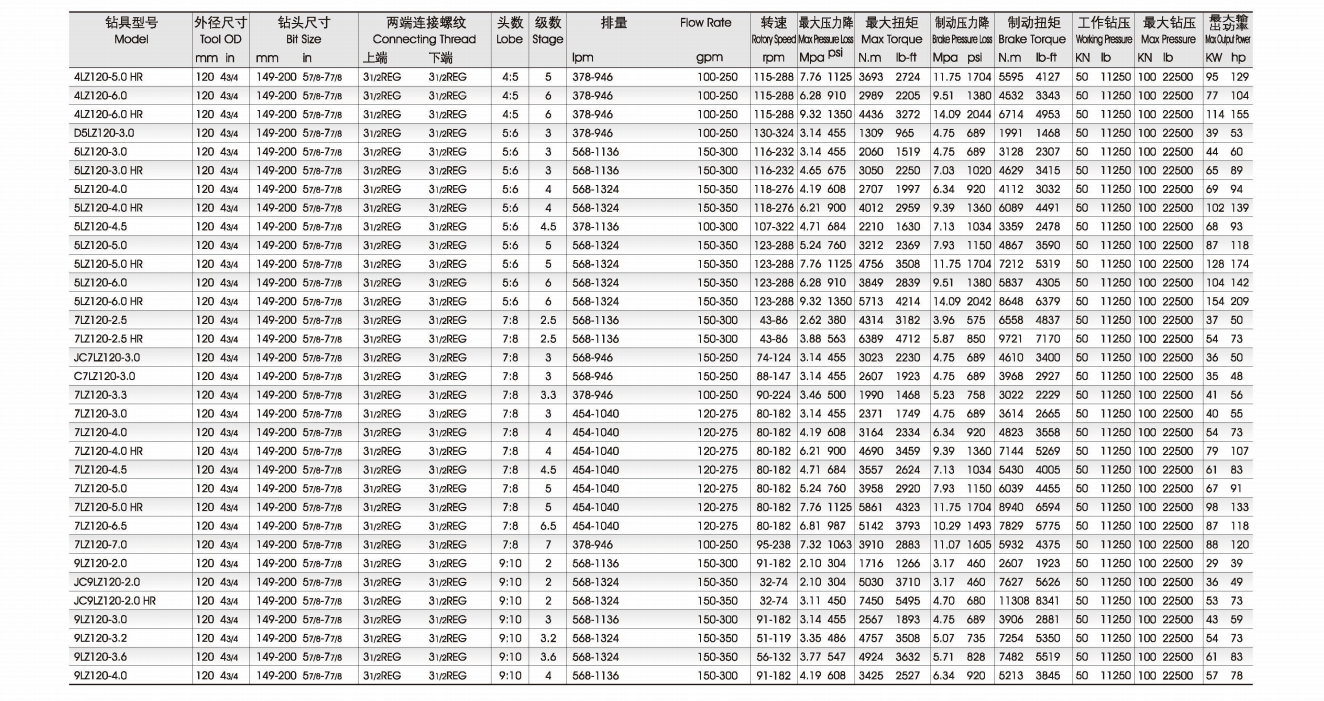

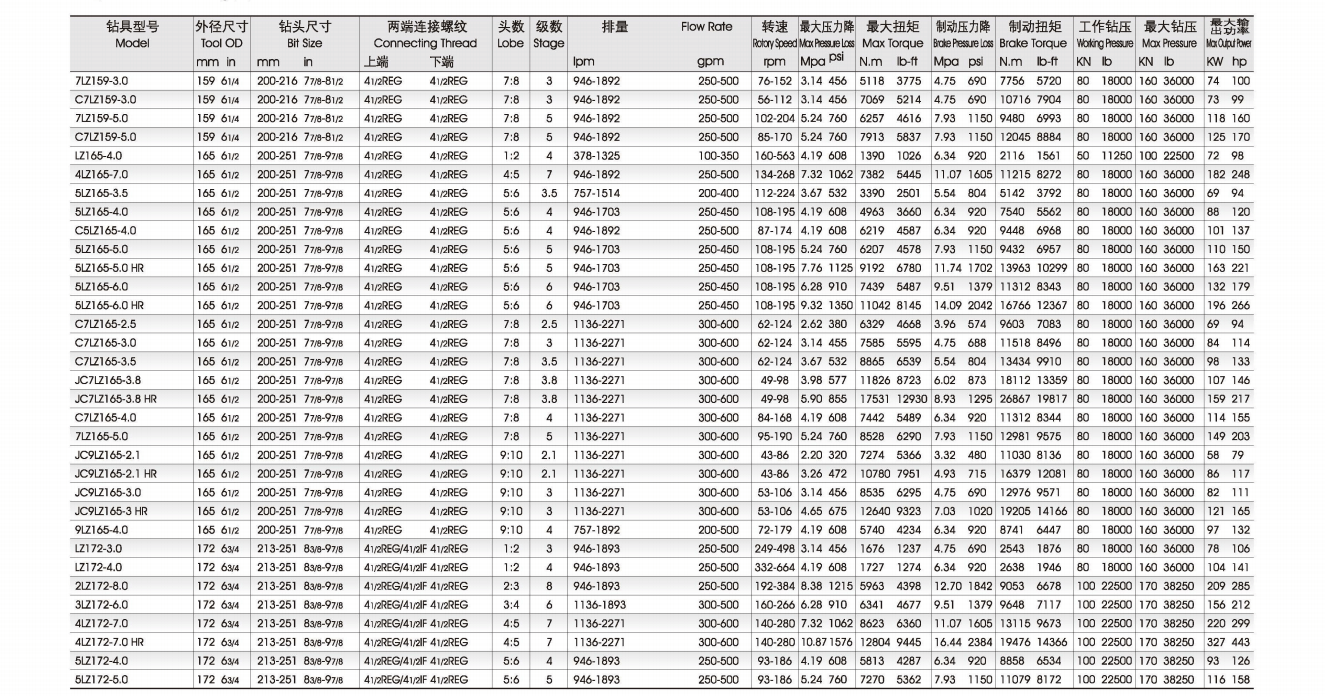

Lilin Drilling Mud motor Parameters

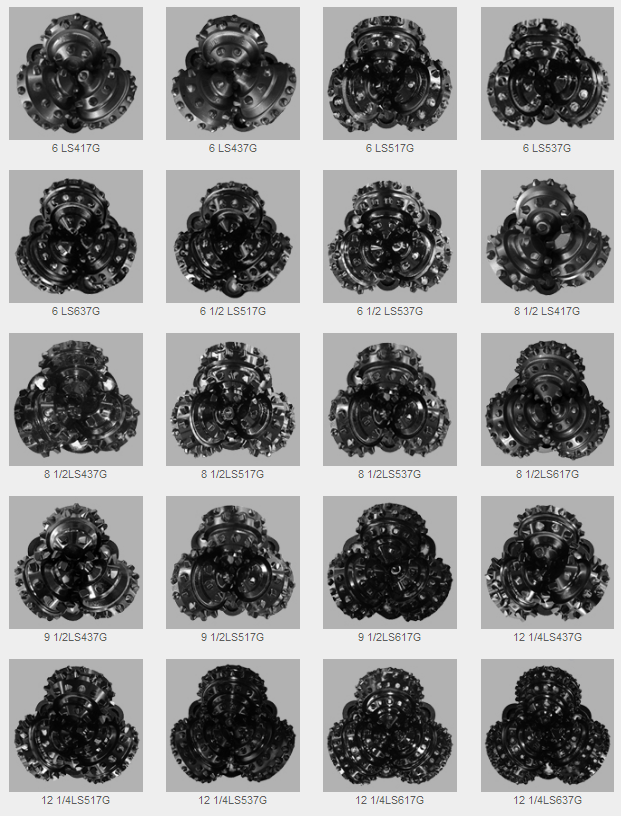

Lilin Also Supply Rock Drilling Bits Tricone Bits
