HDD Mud System For Directional Drilling Project

The mud system is a vital component in HDD projects. Its main function is to maintain the stability of the wellbore during the drilling process, lubricate the drill bit, cool equipment, and help remove cuttings in the hole. The circulation of mud is maintained by a mud pump. The high-pressure mud discharged from the mud pump passes through the surface high-pressure manifold, drilling rig, power head, drill pipe, and drill bit. It is sprayed from the drill bit nozzle to clean the borehole and carry drilling cuttings, and then It flows outward along the annular space formed by the drill string and the hole wall, and then reaches the ground and is discharged into the waste slurry pool, completing a circulation system. At some large construction sites, in order to save costs, the mud discharged from the holes can be re-entered into the mud tank and reused after solid phase separation and performance adjustment.



horizontal directional drilling process
horizontal directional drilling process

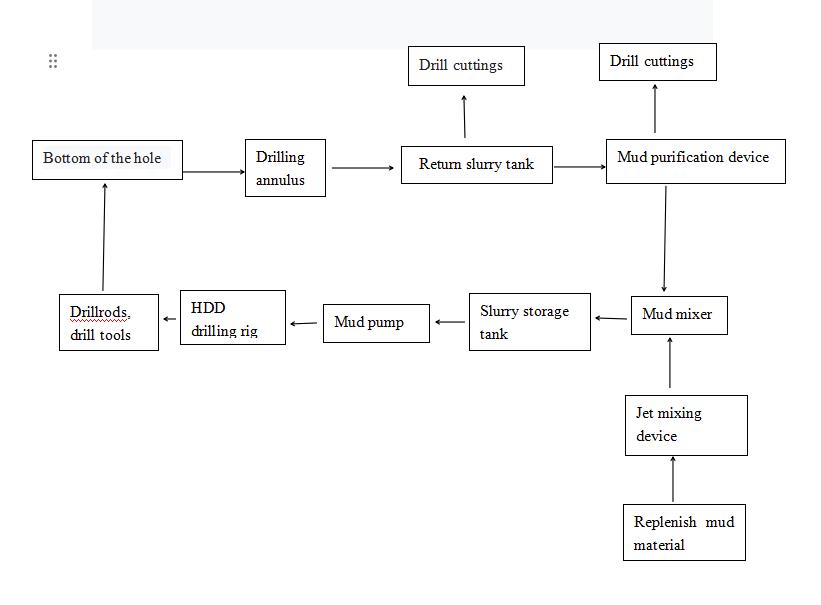

Mud recycling flow chart
Mud recycling flow chart

A typical mud system includes the following components:
Mud Mixer: Responsible for mixing various mud components evenly to ensure the consistency and stability of the mud.
Mud Pump: The mixed mud is transported from the mud tank to the wellbore while maintaining a certain mud flow and pressure.

Separator: Used to separate cuttings and other solid particles in the wellbore to maintain the cleanliness and effectiveness of the mud.

Mud Tank: Used to store mixed mud while providing a stable environment for further processing and transportation.

Measurement Instruments: Including various sensors and measuring equipment to monitor the flow, density, viscosity and other parameters of the mud to ensure that it meets project requirements.

Due to the increasing environmental concerns & more and more competitive market, as well as the drilling waste dumping cost and drilling rig downtime, etc., it has become economical & make more sense to utilize a mud recycling & mixing system in horizontal directional drilling (HDD) processing.

Mud recycler: it help reduce adverse impacts on the environment and reduce waste generation by recycling and reusing mud.By effectively recycling mud, the need for new mud can be reduced, resulting in cost savings and lower operating expenses.The mud recovery system can ensure stable mud quality in the wellbore, reduce unnecessary downtime and cleaning time, and improve drilling efficiency.

At the same time, it can also adjust the mud composition according to specific geological conditions and project needs, improving the adaptability and flexibility of the system.

A effective mud system are required to combine the recycling & mixing function, and the most important principal for an mud system is “Hydraulic Balance”. which means the mud system capacity rate should be almost equal with the mud pump capacity. For example, you can not introduce a 800GPM system for a project that with 1000GPM mud flow. Generally speaking, a mud system should be 120%~150% of the mud pump capacity. The drilling fluid can not bypass shale shakers & hydrocyclones which can be decander or desilter, or integrated mud cleaner. Both Shale shaker & hydrocyclone determine the capacity of a mud system, but basically, formation condition, project environment, and mud system configuration commonly determine the processing capacity of a mud system.

ZLCONN, as a HDD drilling machine manufacturer and drilling expert, We have much knowledge & industrial experience on how to configuration a mud system for you demand.

If you need any support on solids control equipment, or on how to select a specific mud recycling & mixing system for your HDD project, pls feel free to contact:
